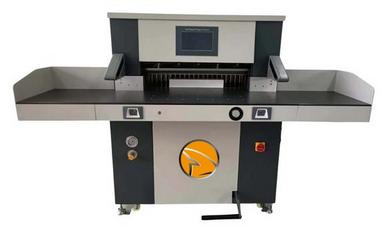

SC-27TS Paper Cutter

Specifications:

CLICK TO SEE VIDEOS OF OUR MACHINES IN OPERATION

Maximum cutting width - 26.5in. / 67.3cm
Maximum cutting depth - 26.5 in / 67.3cm
Minimum cutting size - 0.79 in / 2cm
Clamp Opening Height - 3.35 in / 8.5cm

Work space (edge to blade) - 20.5 in / 52 cm
Cutting - Hydraulic
Clamping - Hydraulic

Air Bed - Yes

Blade Depth Adjustment - Yes
Foot Pedal - Yes
Side Tables - Optional

Size of side tables (each) - 16.5x16.5 in. / 41.91x41.91cm
LED Cut Line Light - Yes

LCD Touch Screen Display - Yes, 10"
Fully Programmable - Yes
Job Memory - 100 Programs with up to 30 cuts each
Light Safety Beams - Yes
Power - 220v, 50/60 hz, 20A, Single Phase
Weight - 1,124 lbs / 510 kg
Size w/ side tables (WxLxH) - 57.5 x 73 x 57.25in / 143 x 185.4 x 145.4cm

Size without side tables (WxLxH) - 57.5 x 40 x 57.25in / 146 x 101.6 x 145.4cm
Safety Standards - Complies with latest CE safety standards
Warranty - 1 year

Shark Finishing Machinery makes every effort at time of publication to ensure the accuracy of its equipment information. Shark Finishing Machinery will not be liable for omissions and/or errors. Due to continued changes and improvements of our product line, specifications and information are subject to change without notice. Actual results are dependent upon application,paper stock, print engine used and environmental conditions can and will affect results.

FINISH smart with SHARK

CLICK TO DOWNLOAD THE BROCHURE FOR ADDITIONAL INFORMATION

Shark Finishing Machinery introduces to its line of digital print finishing equipment the SC-27TS Paper Cutter. This fully programmable, heavy-duty 26.5” hydraulic paper cutter is built stylish and solid. Comes standard with features that usually come at an additional cost with other manufactures. It is fully programmable with easy-to-use LCD 10" color touch screen display, safety light beams for added safety and LED cut-line light for precise cutting. Also equipped with air bed, soft clamp foot pedal, calculator, cutting stick latch, blade depth adjustment right from the screen, auto push out option and office quiet mode. Heavy duty casters make it easy to move the cutter when needed and leveling feet are included for stability. Power requirements is 220 volts, 20amps, single phase. This machine is easy to operate and requires little maintenance.

SC-27TS PAPER CUTTER
